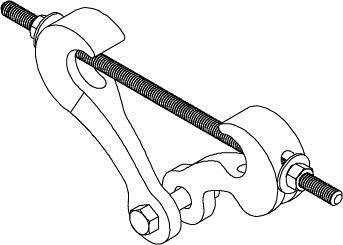

Designed to be used in the suspension of a hanger rod from the center of an I-beam. The clamp’s design allows the load to be distributed equally on either side of the beam. The clamp is adjustable from 23/8” (60.33) to 7? (177.8) and can be used with flange thicknesses up to .60 inches (15.24). Normally used in conjunction with Fig. 25 extension piece. An additional 1? (25.4) or more of vertical adjustment is obtained when used with Fig 25.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Monday through Friday from 7:00 AM to 4:00 PM
Phone: 619-232-5111
Email: sales@unitedfastenersd.net

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: PHD Manufacturing, INC

For More Information on the Malleable Iron Center Load Beam Clamp, [Click Here] to Link to Manufacturer Web Site
