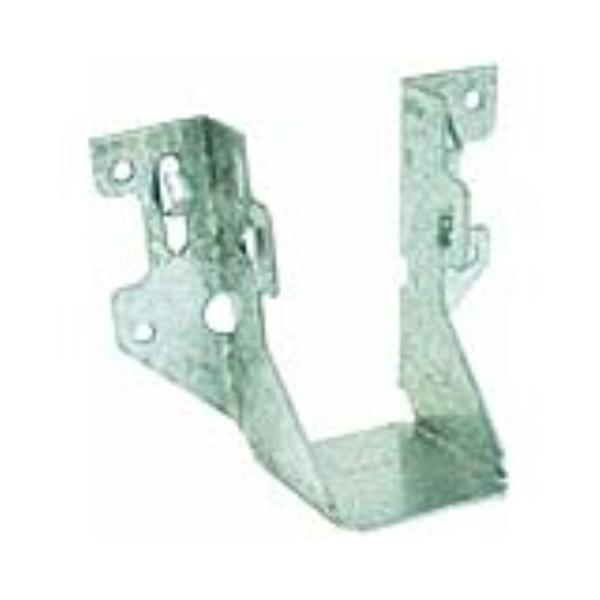

HANGER

Simpson Strong-Tie

(click image to enlarge)
SKUInfo/Size
LUS24
2 X 4/Min. Heel Height: 2-5/8 Ga: 18 Dimensions: (WxHxB) 1-9/16x3-1/8x1-3/4 Carrying Member: 4-10d Carried Member: 2-10d
LUS26
2 X 6/Min. Heel Height: 4-3/16 Ga: 18 Dimensions: (WxHxB) 1-9/16x6-5/8x1-3/4 Carrying Member: 6-10d Carried Member: 4-10d
LUS28
2 X 8/Min. Heel Height: 4-1/4 Ga: 18 Dimensions: (WxHxB) 1-9/16x4-3/4x1-3/4 Carrying Member: 4-10d Carried Member: 4-10d
Quick Overview
    Interested in this item or want more information?
    Monday through Friday from 7:00 AM to 4:00 PM
    Phone: 619-232-5111
    Email: sales@unitedfastenersd.net

    Can't find what you want? Give us a call and we can help you find it.
    Details
    All hangers in this series have double shear nailing - an innovation that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection. Double shear hangers range from the light capacity LUS hangers to the highest capacity HGUS hangers. For medium load truss applications, the MUS offers a lower cost alternative and easier installation than the HUS or THA hangers, while providing greater load capacity and bearing than the LUS.
    Additional Information
    Manufacturer: Simpson Strong-Tie
    For More Information on the HANGER , [Click Here] to Link to Manufacturer Web Site
