Load Values with SD Series Screws

Simpson Strong-Tie

(click image to enlarge)
SKUInfo/Size

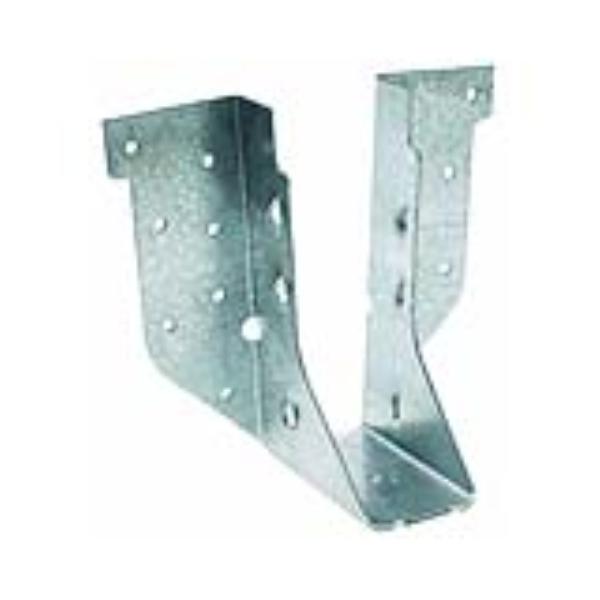

HUS26
2 X 6 14GA/Face: 14-SD10212 Joist: 6-SD10212 Uplift: 1100 DF/SP Floor (-100): 3040 DF/SP Snow (-115): 3125 DF/SP Roof (-125): 3125 SPF/HF Uplift (-160): 945 SPF/HF Floor (100): 2310 SPF/HF Snow (-115): 2655
LUS210
2 X 10/Face: 8-SD9212 Joist: 4-SD9212 DF/SP Uplift (160): 1240 Floor (100): 1910 Snow(100): 2125 Roof(125): 2125 SPF/HF Uplift(160): 1105 Floor(100): 1135 Snow(115): 1310 Roof(125): 1425
Quick Overview

  • Use all specified fasteners. See General Notes.

  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.

  • Nails must be driven at an angle through the joist or truss into the header to achieve the table loads.

  • Not designed for welded or nailer applications.

  • 16d sinkers (0.148" dia. x 3 1/4" long) may be used where 10d commons are specified with no reduction in load. Where 16d commons are specified, 10d commons or 16d sinkers (0.148" dia. x 3 1/4" long) may be used at 0.85 of the table load.

  • With 3x carrying members, use 16d x 2 1/2" nails into the header and 16d commons into the joist with no load reduction.

  • With 2x carrying members, use 10d x 1 1/2" nails into the header and 10d commons into the joist, reduce the load to 0.64 of the table value.
Interested in this item or want more information?
Monday through Friday from 7:00 AM to 4:00 PM
Phone: 619-232-5111
Email: sales@unitedfastenersd.net

Can't find what you want? Give us a call and we can help you find it.
Details
All hangers in this series have double-shear nailing. This innovation distributes the load through two points on each joist nail for greater strength. It also allows the use of fewer nails, faster installation, and the use of standard nails for all connections. (Do not bend or remove tabs.)
Additional Information
Manufacturer: Simpson Strong-Tie
For More Information on the Load Values with SD Series Screws, [Click Here] to Link to Manufacturer Web Site
