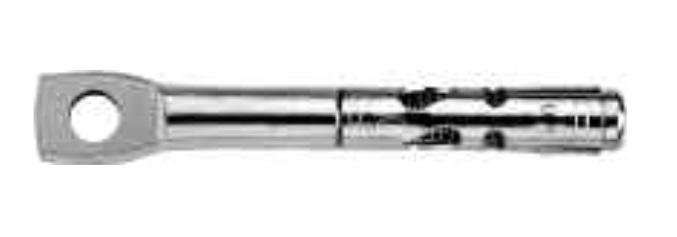

Tie-Wire Lok-Bolt AS

Anchors Powers DeWalt

(click image to enlarge)
SKUInfo/Size
5700S
5/16" x 1-1/2"
Quick Overview

    General Applications and Uses :
  • Door And Window Frame Installations
  • Masonry Applications
  • Electrical / Mechanical Applications
  • Mounting Fixtures On Walls
  • General Purpose Anchoring
Interested in this item or want more information?
Monday through Friday from 7:00 AM to 4:00 PM
Phone: 619-232-5111
Email: sales@unitedfastenersd.net

Can't find what you want? Give us a call and we can help you find it.
Details

Lok-Bolt AS    Sleeve Anchor

Product Description :

The Lok-Bolt AS is an all steel pre-assembled single unit sleeve anchor which is designed foruse in concrete or masonry base materials. The anchors are available in multiple head stylesfor multiple applications and a finished appearance. Anchor extender sleeves can be addedto create longer lengths.


General Applications and Uses :
  • Door And Window Frame Installations
  • Masonry Applications
  • Electrical / Mechanical Applications
  • Mounting Fixtures On Walls
  • General Purpose Anchoring


  • Features and Benefits :
    + Variety of head styles, lengths and sizes
    + All steel component design
    + Preassembled anchor for immediate installation
    + Sleeve keeps anchor centered in hole and has 360° contact area for even stressdistribution
    + Versatile – can be used for solid and hollow concrete or masonry applications
    + Designed to allow fixture to draw snug against the base material during tightening

    Guide Specifications :

    CSI Divisions: 03151–Concrete Anchoring, 04081-Masonry Anchorage, 5090-MetalFastenings. Sleeve anchors shall be Lok-Bolt AS anchors supplied by Powers Fasteners, Inc.


    Material Specifications :

    Anchor ComponentCarbon Steel VersionStainless Steel Version
    Plow-BoltAISI 1010/1018Type 304 Stainless Steel
    Expansion SleeveAISI 1010Type 304 Stainless Steel
    ExtenderAISI 1010N/A
    Zinc PlatingASTM B 633, SC1, Type III (Fe/Zn 5)N/A


    Ordering Information :

    Hex Nut Lok-Bolt AS :

    Catalog NumberSizeDrill Dia.Std. BoxStd. Ctn.
    Carbon SteelStainless Steel
    5005S-5/16" x 1-1/2"5/16"1001000
    5010S-5/16" x 2-3/8"5/16"100500
    5015S6152S3/8" x 1-7/8"3/8"50500
    5020S6153S3/8" x 3"3/8"50500
    5022S-3/8" x 4"3/8"50250
    5025S6156S1/2" x 2-1/2"1/2"25250
    5030S6157S1/2" x 3"1/2"25250
    5034S6160S1/2" x 3-3/4"1/2"25125
    5033S-1/2" x 5-1/4"1/2"25125
    5032S-1/2" x 6"1/2"10100
    5035S-5/8" x 2-1/2"5/8"25125
    5038S-5/8" x 3"5/8"25125
    5040S6164S5/8" x 4-1/4"5/8"10100
    5045S-5/8" x 5-3/4"5/8"10100
    5050S-3/4" x 2-3/4"3/4"10100
    5055S-3/4" x 4-1/4"3/4"1040
    5060S-3/4" x 6-1/4"3/4"1030
    5065S-3/4" x 8-1/4"3/4"1030


    Acorn Nut Lok-Bolt AS :

    Catalog NumberSizeDrill Dia.Std. BoxStd. Ctn.
    Carbon SteelStainless Steel
    5125S-1/4" x 5/8"1/4"1001000
    5150S6150S1/4" x 1-3/8"1/4"1001000
    5175S-1/4" x 2-1/4"1/4"1001000


    Round Head Lok-Bolt AS, Slotted :

    Catalog NumberSizeDrill Dia.Std. BoxStd. Ctn.
    Carbon SteelStainless Steel
    5205S-1/4" x 1-3/8"1/4"1001000
    5210S6180S1/4" x 2-1/4"1/4"1001000
    5215S-1/4" x 3"1/4"1001000
    5220S-1/4" x 3-3/4"1/4"1001000
    5225S-5/16" x 2-3/8"5/16"1001000
    5230S-5/16" x 3-3/8"5/16"100500
    5235S-3/8" x 2-3/4"3/8"50500
    5240S-3/8" x 3-3/4"3/8"50250


    Combo Flat Head Lok-Bolt AS :

    Catalog NumberSizeDrill Dia.Std. BoxStd. Ctn.
    Carbon SteelStainless Steel
    5305S-1/4" x 1-1/2"1/4"1001000
    5310S6170S1/4" x 2-1/4"1/4"1001000
    5315S6172S1/4" x 3"1/4"1001000
    5320S-1/4" x 4"1/4"100500
    5325S-1/4" x 5-1/4"1/4"100500
    5330S-5/16" x 2-1/2"5/16"1001000
    5340S-3/8" x 2-3/4"3/8"50500
    5345S6174S3/8" x 4"3/8"50250
    5350S6175S3/8" x 5"3/8"50250
    5360S6176S3/8" x 6"3/8"50250


    Threshold Flat Head Lok-Bolt AS :

    Cat #SizeDrill Dia.Std. BoxStd. Ctn.
    5500S1/4" x 2"1/4"1001000


    Rod Hanger Lok-Bolt AS :

    Cat #SizeDrill Dia.Std. BoxStd. Ctn.
    5810S1/4" x 1-1/2"1/4"50250
    5815S3/8" x 1-7/8"3/8"50250
    5825S1/2" x 2-1/4"1/2"25125


    Tie-Wire Lok-Bolt AS :

    Cat #SizeDrill Dia.Std. BoxStd. Ctn.
    5700S5/16" x 1-1/2"5/16"1001000


    Lok-Bolt AS Extenders :

    Cat #SizeDrill Dia.Std. BoxStd. Ctn.
    5684S3/8" x 1-1/4"3/8"50500


    View Product Specification
    Additional Information
    Manufacturer: Anchors Powers DeWalt
    For More Information on the Tie-Wire Lok-Bolt AS, [Click Here] to Link to Manufacturer Web Site
