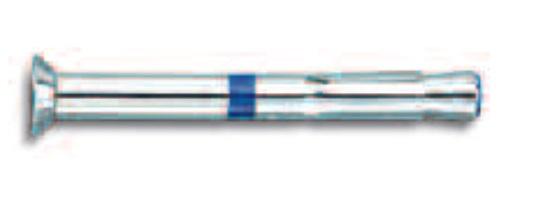

Carbon Steel Flat Head Power-Bolt

Powers Fasteners

(click image to enlarge)
SKUInfo/Size
6981
3/8" x 3 3/4"
6982
3/8" x 5"
6983
3/8" x 6"
6984
1/2" x 5"
6987
5/8" x 5 1/2"
Quick Overview

    General Applications and Uses :
  • Column Base Plates and Mechanical Equipment
  • Dock Bumpers and Support Ledgers
  • Racking and Railing Attachments
Interested in this item or want more information?
Monday through Friday from 6:30 AM to 4:30 PM
Phone: 619-232-5111
Email: sales@unitedfastenersd.net

Can't find what you want? Give us a call and we can help you find it.
Details

Power-Bolt    Heavy-Duty Sleeve Anchor

Product Description :

The Power-Bolt anchor, is a heavy duty sleeve style, self-locking anchor which is vibrationresistant and removable. It is available with a finished hex head or flat head with a hex keyinsert and can be used in concrete, block, brick, or stone.Expansion occurs at two locations within the drilled hole. First, the cone is pulled into thelarge triple-tined expansion sleeve, developing a mid-level, compression force. Further turningcauses the threaded bolt to advance into the threads of the expander cone, forcing its foursections outward. This action engages the base material deep in the anchor hole, greatlyincreasing the holding power of the Power-Bolt. The bolt and cone remain locked togetherwhich prevents loosening under vibratory conditions.The Power-Bolt is also designed to draw the fixture into full bearing against the base materialthrough the action of its flexible compression ring. As the anchor is being tightened, thecompression ring will crush if necessary to tightly secure the fixture against the face of thebase material.The internal bolt of the Power-Bolt is removable and reusable in the same anchor sleevemaking it suitable for applications such as mounting machinery which may need to beremoved for service and for temporary applications such as heavy duty form work.


General Applications and Uses :
  • Column Base Plates and Mechanical Equipment
  • Dock Bumpers and Support Ledgers
  • Racking and Railing Attachments


  • Features and Benefits :
    + High load capacity
    + Two-level expansion mechanism
    + Internal high strength bolt is removable and reusable
    + Compression zone in sleeve clamps fixture to the base material
    + Low profile finished head design

    Testing, Approvals and Listings :

    Tested in accordance with ASTM E488 and AC01 criteriaFM Global (Factory Mutual) – File No. J.I. 1K8A3.AH (See report for sizes)Underwriters Laboratories (UL Listed) – File No. EX1289 (See listing for sizes)


    Approvals and Listings :

    CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry Anchorage and 05090-MetalFastenings. Expansion anchors shall be Power-Bolt as supplied byPowers Fasteners, Inc., Brewster, NY.


    Ordering Information :

    Carbon Steel Hex Head Power-Bolt :

    Cat. No.Anchor SizeDrill Dia.Min. Embed.Std. BoxStd. CartonWt./100
    69001/4" x 1"1/4"7/8"1006002
    69021/4" x 1 3/4"1/4"1-1/4"1006003
    69061/4" x 3"1/4"1-1/4"1006005
    69075/16" x 1 3/4"5/16"1-1/2"1006005
    69085/16" x 2 1/2"5/16"1-1/2"503006
    69095/16" x 3 1/2"5/16"1-1/2"503008
    69113/8" x 1 7/8"3/8"1-1/4"503006
    69103/8" x 2 1/4"3/8"2"503008
    69133/8" x 3"3/8"2"5030011
    69143/8" x 3 1/2"3/8"2"5030012
    69163/8" x 4"3/8"2"5030014
    69301/2" x 2 3/4"1/2"2-1/2"5020016
    69321/2" x 3 3/4"1/2"2-1/2"2515021
    69341/2" x 4 3/4"1/2"2-1/2"2515026
    69361/2" x 5 3/4"1/2"2-1/2"2515032
    69405/8" x 3"5/8"2-3/4"2012028
    69425/8" x 4"5/8"2-3/4"159040
    69445/8" x 5"5/8"2-3/4"159047
    69455/8" x 6"5/8"2-3/4"159057
    69475/8" x 8 1/2"5/8"2-3/4"104077
    69503/4" x 3 1/4"3/4"3"159047
    69523/4" x 4 1/4"3/4"3"106058
    69543/4" x 5 1/4"3/4"3"106070
    69563/4" x 7 1/4"3/4"3"1040105
    69573/4" x 8 1/4"3/4"3"1040110


    Carbon Steel Flat Head Power-Bolt :

    Cat. No.Anchor SizeDrill Dia.Min. Embed.Std. BoxStd. CartonWt./100
    69813/8" x 3 3/4"3/8"2"5030014
    69823/8" x 5"3/8"2"5030017
    69833/8" x 6"3/8"2"5030020
    69841/2" x 5"1/2"2-1/2"2515026
    69875/8" x 5 1/2"5/8"2-3/4"159057


    Stainless Steel Hex Head Power-Bolt :

    Cat. No.Anchor SizeDrill Dia.Min. Embed.Std. BoxStd. CartonWt./100
    59021/4" x 1 3/4"1/4"1-1/4"1006003
    59061/4" x 3"1/4"1-1/4"1006005
    59103/8" x 2 1/4"3/8"2"5030010
    59143/8" x 3 1/2"3/8"2"5030012
    59163/8" x 4"3/8"2"5030014
    59301/2" x 2 3/4"1/2"2-1/2"5020016
    59341/2" x 4 3/4"1/2"2-1/2"2515026


    View Product Specification
    Additional Information
    Manufacturer: Powers Fasteners
    For More Information on the Carbon Steel Flat Head Power-Bolt, [Click Here] to Link to Manufacturer Web Site
