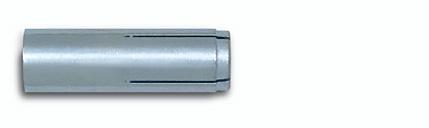

Steel Dropin    Internally Threaded Expansion Anchor

Product Description :
The Steel Dropin is an all-steel, machine bolt anchor available in carbon steel and two typesof stainless steel. It can be used in solid concrete, hard stone, and solid block base materials.A coil thread version for forming applications is also available.

General Applications and Uses :

Suspending conduit

Cable trays and strut

Pipe supports

Fire sprinkler

Concrete Formwork

Suspended lighting

Features and Benefits :
+ Internally threaded anchor for easy bolt removability and service work
+ Flanged (lipped) version installs flush for easy inspection and standard embedment
+ Smooth wall dropin can be installed flush mounted or below the base material surface
+ Optionally available with a knurled body
+ Coil thread version accepts coil rod and typically used for concrete formwork applications

Testing, Approvals and Listings :
Tested in accordance with ASTM 488 and AC01 criteriaFM Global (Factory Mutual) - File No. J.I. OK4A9.AH (see ordering information)Underwriters Laboratory (UL Listed) – File No. EX1289 (N) (see ordering information)

Guide Specifications :
CSI Divisions: 03151-Concrete Anchoring and 05090-Metal Fastenings. Dropin anchorsshall be Steel Dropin as supplied by Powers Fasteners, Inc., Brewster, NY.

View Product Specification

View Submittals
English

Additional Information

Manufacturer: Anchors Powers DeWalt

For More Information on the Carbon Steel Smooth Wall Dropin, [Click Here] to Link to Manufacturer Web Site
