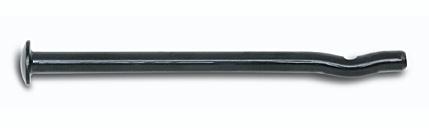

Roofing Spike

Powers Fasteners

(click image to enlarge)
SKUInfo/Size
3453
1/4" x 9"
3723
1/4" x 1 1/2"
3727
1/4" x 2 1/2"
3729
1/4" x 3"
3731
1/4" x 3 1/2"
3733
1/4" x 4"
3735
1/4" x 4 1/2"
3737
1/4" x 5"
3739
1/4" x 5 1/2"
3741
1/4" x 6"
3743
1/4" x 6 1/2"
3745
1/4" x 7"
3747
1/4" x 7 1/2"
3749
1/4" x 8"
3757
1/4" x 10"
3765
1/4" x 11"
3769
1/4" x 12"
3773
1/4" x 13"
3777
1/4" x 14"
3811
1/4" x 1 1/4"
Quick Overview

    General Applications and Uses :
  • Fastening insulation, single-ply membrane, wood and metal to structural concrete decks.
Interested in this item or want more information?
Monday through Friday from 6:30 AM to 4:30 PM
Phone: 619-232-5111
Email: sales@unitedfastenersd.net

Can't find what you want? Give us a call and we can help you find it.
Details

Roofing Spike      Anchor

Product Description

For roofing applications, the SPIKE is a one-piece, vibration resistant anchor available in 3/16" and 1/4" diameters for use in fastening insulation, single-ply membrane, wood, and metal to structural concrete roof decks. This version of the SPIKE has a Perma-Seal coating a proprietary fluoropolymer which meets the corrosion resistance requirements of FMRC Standard 4470. It is designed for use in conjunction with Powers insulation or membrane stress plates.


General Applications and Uses :
  • Fastening insulation, single-ply membrane, wood and metal to structural concrete decks.


  • Approvals and Listings :

    Factory Mutual Research Corporation - Now Known as FM Global (FM Approvals)
    Structural Concrete Deck - J.I. 1K6A7 .AM, J.I. 0N9A2.AM, J.I. 1M4A5.AM
    Fully Adhered Single-Ply and Modified Bitumen Coverings (All Decks) - J.I. 1T9A4.AM

    Material Specifications :

    Anchor ComponentComponent Material
    Anchor BodyGrade 8.2 Carbon Steel
    CoatingPerma-Seal Fluoropolymer


    Ordering Information :

    Roofing Spike :
    Cat. No.Anchor SizeDrill DiameterMin. EmbedmentStd. BoxStd. CartonWt./100
    3811 1/4" x 1 1/4" 1/4"7/8"5005002 1/2
    3723 1/4" x 1 1/2"1/4"1 1/4"5005002 1/2
    37251/4" x 2"1/4"1 1/4"5005003
    37271/4" x 2 1/2"1/4"1 1/4"5005004
    3729 1/4" x 3"1/4"1 1/4"5005004 1/2
    3731 1/4" x 3 1/2"1/4"1 1/4"5005005
    37331/4" x 4"1/4"1 1/4"5005006
    37351/4" x 4 1/2"1/4"1 1/4"5005006 1/2
    37371/4" x 5"1/4"1 1/4"5005007
    37391/4" x 5 1/2"1/4"1 1/4"5005007 1/2
    37411/4" x 6"1/4"1 1/4"2502508
    37431/4" x 6 1/2"1/4"1 1/4"2502508 1/2
    37451/4" x 7"1/4"1 1/4"2502509 1/2
    37471/4" x 7 1/2"1/4"1 1/4"25025010 1/2
    37491/4" x 8"1/4"1 1/4"25025011
    34531/4" x 9"1/4"1 1/4"25025012
    37571/4" x 10"1/4"1 1/4"25025013
    37651/4" x 11"1/4"1 1/4"10010014
    37691/4" x 12"1/4"1 1/4"10010015
    37731/4" x 13"1/4"1 1/4"10010016
    37771/4" x 14"1/4"1 1/4"10010017


    Roofing Spike Installation Tools :
    Cat. No.DescriptionGuide I.D.Std. BoxWt./Each
    3790Spike Driver 10001/2"11/4
    3791Spike Driver 20001/2"11/4


    View Product Specification
    Additional Information
    Manufacturer: Powers Fasteners
    For More Information on the Roofing Spike, [Click Here] to Link to Manufacturer Web Site
